Excavator Telescopic Boom for XCMG Cat320 Cat330 Sany Excavators
Product Specifications
| Attribute |
Value |
| Video outgoing-inspection |
Provided |
| Machinery Test Report |
Provided |
| Warranty |
6 months |
| Weight (kg) |
5000 |
| Suitable Excavator |
20-50ton |
| Core Components |
Engine, Bearing |
| Material |
Q355B |
| MOQ |
1 Piece |
| Color |
Customizable |
| Quality Control |
Test Equipment |
| After sales Service |
Online Support |
Product Overview
The excavator telescopic boom consists of a fixed body, sliding body, steel wire rope and telescopic cylinder. By adjusting the number of sliding bodies, it achieves optimal working radius and vertical excavation range. Designed for deep pit excavation tasks, it works effectively with buckets for handling soil, sand, or coal.
Key Advantages
- Three-section telescopic boom constructed with BS900E and Q355B materials for lightweight durability
- 6mm thickness construction for enhanced strength
- Nylon sliders with steel pulleys and centralized lubrication system
- External hose pulley design simplifies maintenance and hose replacement
- Dual rope safety system prevents uncontrolled extension if main rope fails
Standard Size References
| Excavator (ton) |
Max Depth (mm) |
Effective Length (mm) |
Bucket Capacity (cbm) |
| 6-10 |
10000 |
7600 |
0.2-0.3 |
| 11-15 |
14000 |
10500 |
0.4-0.6 |
| 20-30 |
16000 |
12500 |
0.8-1.5 |
| 30-35 |
20000 |
15500 |
1.3-1.66 |
| 40-45 |
25000 |
20500 |
1.8-2.5 |

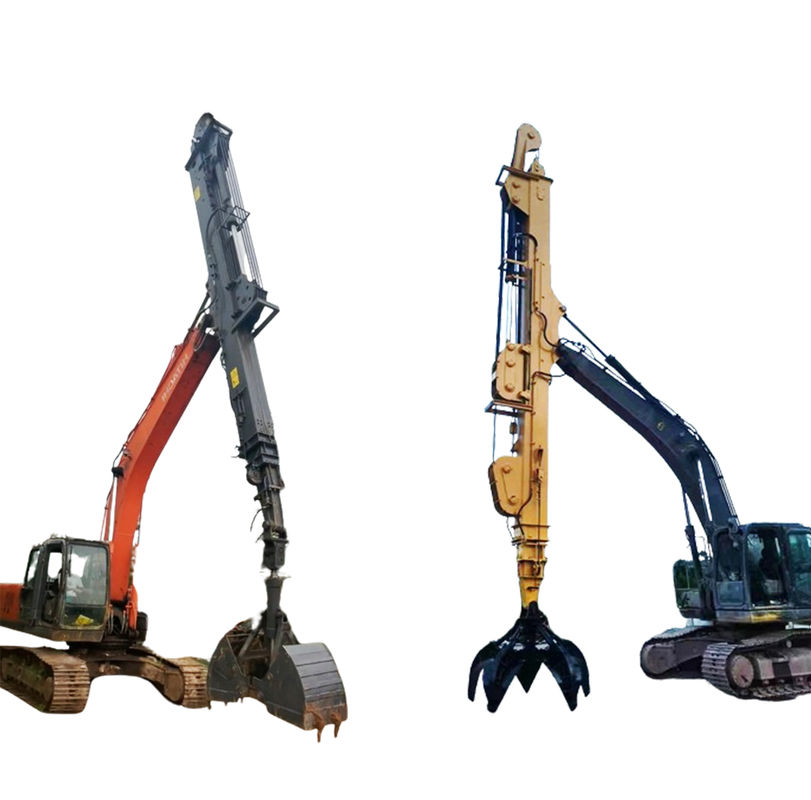

Bucket Compatibility
Our telescopic boom supports three bucket types:
- Clamshell Bucket: Ideal for subway deep digging projects
- Grab Bucket: Provides power for stone handling applications
- Standard Bucket: Specially designed for telescopic boom operation
Engineering Features
Four Pulley Design
Features two sliding wheels on top and bottom to separate high-pressure hoses from wire ropes, reducing wear and extending service life.
30mm Main Rope
High-tensile wire rope withstands greater pressure with superior wear resistance for extended durability.
26mm Auxiliary Wire Rope
Enables horizontal extension and retraction of the telescopic arm.
Ningbo Connector
Metal construction offers high compression resistance and easy loading/unloading capability.
High-Quality Nylon Sliders
Nylon material reduces friction while POM material wheels provide high mechanical strength.
Centralized Lubrication System
Multiple access points simplify oil refilling for operators, all conveniently located at the front of the arm.
Engineering Applications
30M Telescopic Boom for XCMG Excavator
30M Telescopic Boom for CAT Excavator
32M Telescopic Boom for SANY Excavator
25M Telescopic Boom for HITACHI Excavator
Certifications & Shipping
CE Certification & Utility Model Patents
Our products ship worldwide via sea, land, and air transport. We use wooden box or stretch film packaging to ensure safe delivery to over 60 countries.
Frequently Asked Questions
Are you a manufacturer?
We are a manufacturer/supplier with extensive production facilities in Guangdong Province, exporting to over 60 countries worldwide.
What's the difference between clamshell and grab buckets?
Clamshell buckets excel with silt/sand while grab buckets handle stone work better. Grab buckets are generally smaller but more effective for rocky conditions.
Single vs double cylinder design?
We exclusively use double cylinder designs for lower failure rates and easier maintenance, despite slightly higher weight.
What materials are used?
Arm tubes use BS900E with other components in Q355B, all with 6mm thickness for optimal durability-to-weight ratio.
